Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃

Name: Overheating Overloading Motor Protector Bimetal Snap Action Disc 50 170
Brand: DESHENG
Price: 1 USD

China Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃ wholesale

Brand Name : DESHENG

Model Number : 17AM-D

Certification : UL VDE CE

Place of Origin : China

MOQ : 1000pcs

Payment Terms : T/T L/C D/P

Supply Ability : 5,000,000pcs/month

Delivery Time : 3-10 days on order

Packaging Details : 5000pcs per package

Product Name : Motor Thermal Protector

Contact capacity : 125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A

Temperature Tolerance : ±5°C

Cycles life : 6,000-10,000cycles

Certifications : UL,VDE,CE CQC

Sleeve : Mylar or customized

Terminals : Same or opposite side

Action type : Snap

Contact Now

Overheating / Overloading Motor Thermal Protector Bimetal Snap Action Disc 50 - 170℃

Description

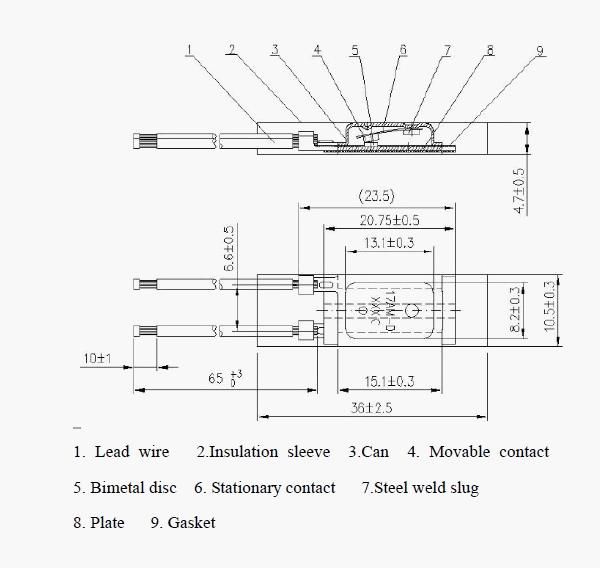

17AM-D is a thermally operated snap-action device which delivers the over heat protection with advanced structure, high contact capacity and long cycle life. The operating principle of the 17AM-D is both simple and effective. At the heart of the proctor is a bimetal snap–action disc. When the temperature of this disc reaches its pre-calibrated temperature it snaps open, resulting in an open circuit. This temperature is reached during a fault condition, caused by either an increase in ambient temperature, an increase in current flowing through the discs, or a combination of both. After the 17AM-D breaks the circuit, the system cools down and the 17AM-D automatically resets, allowing power to be restored to the circuit.

Specifications

Normally close, open on temperature rise, automatic reset
Contact capacity	125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Cycles life	6,000-10,000cycles
Open temperature	50°C to 160°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	High-seal and low-seal gasket material available
Contact resistance	≤100 mW
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.

Applications:

Lightings
Battery packs and battery charger output
Shaded pole motors
Fluorescent lighting ballasts
Washers and dryers
Dishwashers
Transformers
Automotive accessory motors
PC boards
………and more.

Competitive Advantage

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

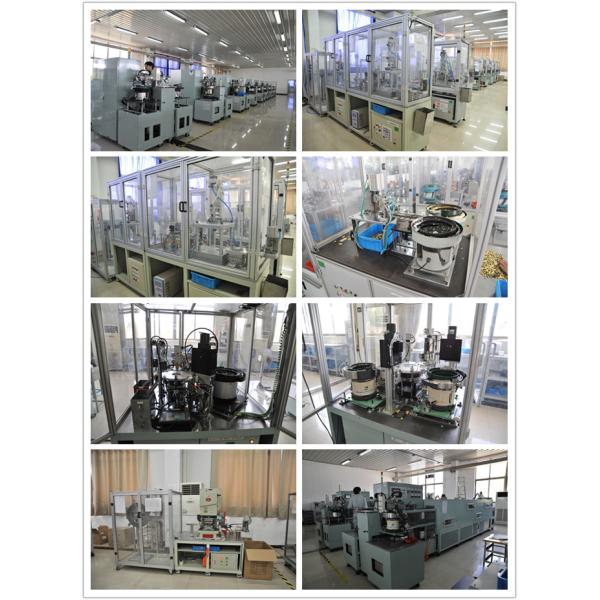

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bbimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃

Type	Opening Temp.	Closing Temp.(only for reference)
17AM-D60	60±5℃	45±10℃
17AM-D65	65±5℃	50±10℃
17AM-D70	70±5℃	50±12℃
17AM-D75	75±5℃	55±12℃
17AM-D80	80±5℃	55±15℃
17AM-D85	85±5℃	60±15℃
17AM-D90	90±5℃	60±15℃
17AM-D95	95±5℃	65±15℃
17AM-D100	100±5℃	65±15℃
17AM-D105	105±5℃	70±15℃
17AM-D110	110±5℃	70±15℃
17AM-D115	115±5℃	75±15℃
17AM-D120	120±5℃	75±15℃
17AM-D125	125±5℃	80±15℃
17AM-D130	130±5℃	85±15℃
17AM-D135	135±5℃	85±15℃
17AM-D140	140±5℃	90±15℃
17AM-D145	145±5℃	95±15℃
17AM-D150	150±5℃	95±15℃
17AM-D155	155±5℃	100±15℃
17AM-D160	160±5℃	105±15℃

Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃

Product Tags:

thermal protector for motor

motor circuit protector
